CABLE TRAYS
Our Products
Ladder Type Cable Trays Features
- Standardized side rail and rung sections ensure faster delivery and uniformity.Â
- Data available on load testes of various sizes different combinations.Â
- Intermediate coupler holes facilitate mounting of accessories like earth flats, provide ready coupling holes on cutting and promote better drainage during galvanizing. Holes pattern also display thickness of material used.Â
- Larger bends design with rungs welded to frames, ensures good hot dip galvanized.Â
- Assembly of ladders of pattern adopted by Advance Group companies offered for better galvanizing result.Â
- Innovative clamps for earth flats, cables, covers, and hold down clamp arrangement
options available. - Available finishes hot Dip Galvanized. Aluminium, SS304. SS316.Â
- Powder Coated (PC), HDG + PC (Special applications).Â
- Standard length : 2500/3000 mm.Â
- Certified for electrical continuity and impact test in accordan
STANDARD DIMENSIONS :
Depth :Â 50mm, 75mm, 100mm, 150mm
Width :Â 300mm, 450mm, 600mm, 750mm, 900mm, 1000mm, 1200mm
Rungs Spacing :Â 250mm
Sheet Metal Thickness 16 Gauge / 14 Gauge / 12 Gauge
- Customised Design can be manufactured to meet special requirements.
- Material : GI, MS, AL, & SS sheets.
- Finish : Pre galvanised, Hot dip galvanized, Powder coated, Painted.
Accessories :

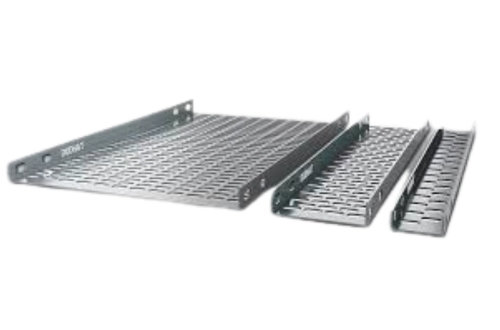

Perforated Cable Trays Features
- Punch pattern adopted as per international practices.
- Pattern adopted results in less distortion during various processes. When contract provides, intermediate coupler holes provided on flanges fold.
- Choice of Straight flange or reverse inward flange available to customer.
- Bottom coupling on wider than 600 mm trays ensures full alignment during installation and reduces deflections at joints.
- Liberal space between punch lines gives adequate space for easy cutting shorter.
- Additional features like cutouts and knockouts can be provided as permutual agreement innovative earth flat mounting clamp available.
- Available finishes : Hot Dip Galvanized (HDG), Pre Galvanized, Aluminum, SS304, SS316, Powder Coated (PC), HDG + PC ( special specification).Â
- Standard Length : 2500 / 3000mmÂ
- Certified for electrical continuity and impact test in accordance with IEC61537
Â
STANDARD DIMENSIONS :
Depth :Â 50mm, 75mm, 100mm, 150mm
Width :Â 100mm, 150mm, 300mm, 450mm, 600mm, 750mm, 900mm, 1000mm, 1200mm
Sheet Metal Thickness 16 Gauge / 14 Gauge / 12 Gauge
- Customised Design can be manufactured to meet special requirements.
- Material : GI, MS, AL, & SS sheets.
- Finish : Pre galvanised, Hot dip galvanized, Powder coated, Painted.
Accessories :
Raceways Trays Features
- Loggled design means smooth interiors to avoid wire damage while pullingd.
- Partition can be provided for width above 75mm width at min 50mm intervals
- Cutout on partition can be provided.
- Knockouts of 20mm dia can be provided on 50mm height raceways.
STANDARD DIMENSIONS :
Depth :Â 25mm, 50mm, 75mm, 100mm, 150mm 25mm, 50mm, 75mm, 100mm, 150mm
Width :Â 50mm,100mm, 150mm, 200mm, 250mm, 300mm, 450mm
Sheet Metal Thickness 16 Gauge / 14 Gauge / 12 Gauge
- Customised Design can be manufactured to meet special requirements.
- Material : GI, MS, AL, & SS sheets.
- Finish : Pre galvanised, Hot dip galvanized, Powder coated, Painted.
Junction box (Height Adjustable)
Cablay Underfloor Trunking System is designed for the distribution of power, voice and data services in floors where the trunking is buried in the screed. This system provides the simplest and most economical method of carrying services to feed a grid of outlet installation and can be used to integrate with perimeter or surface trunking systems.
FEATURE BENEFITS :
- Constructed from pre-galvanized steel sheets in accordance with BS 4678 : Part 2, BS EN 50085-2-2 & IEC 61084-2-2.
- Trap & frame tested to withstand 4.5KN concentrated load. Underfloor trunking (screeded) tested to withstand 30KN concentrated load.
- The system incorporates numerous design features to ensure a fast and simple installation.
- Designed to support CAT 6 structured cabling systems.
- Suitable for screeded depth from 56mm to 85mm.
- Floor boxes are IP30 rated in accordance with BS EN 60529.
- Choice of 1, 2, 3 or 4 compartment floor boxes.
- Wide range of power & data accessories available to meet all requirements.
