LT CONTROL CABLE
LT cables use stranded copper conductors. Although small conductor of cables may use solid conductors. The overall assembly may be round or flat. Non-conducting filler strands may be added to the assembly to maintain its shape. Special purpose LT cables for overhead or vertical use may have additional elements such as steel structural supports. Some LT cables for outdoor overhead use may have no outer sheath.
Features :
Size: 1.5 Sq.mm. & 2.5 Sq.mm. upto 37 Cores
Conductor: Annealed Bare Electrolytic Copper/ Aluminum Conductor conforming to IS:8130:1984
Insulation: Conductors are insulated with PVC Compound as per IS:5831:1984.
Colour Of Cores: Cores are identified with a colour scheme as per IS:1554 (pt-1):1988 as under
- 2 Cores: Red and Black
- 3 Cores: Red, Yellow, and Blue
- 5 And 4 cores: Red, Yellow, Blue & Black (Reduced Neutral Core in case of 3½ Core).
Inner Sheath: The Inner Sheath is applied over laid up of cores by extrusion/wrapping of thermoplastic material.
Armouring: It is applied over inner sheath. It may consist of galvanized Round Steel wires or galvanized Flat Steel Strips conforming to IS 3975. Round Wire armouring is provided, where the calculated diameter under armour is 13.0 mm. Above this, armouring is either round wire/steel strip.
Outer Sheath: A final covering of PVC Compound, confirming to IS:5831-1984, is applied over Armouring in case of Armoured Cable or Over Inner Sheath in case of Unarmoured cable, called as “Outer Sheath”. The Insulation, Inner Sheath or Outer Sheath can be PVC, FRLS PVC or FRHF Compound, depending upon their application.

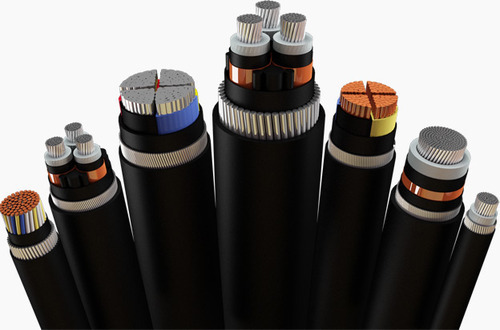

LT POWER CABLE
LT cables use stranded copper or aluminium conductors. Although small conductor of cables may use solid conductors. The overall assembly may be round or flat. Non-conducting filler strands may be added to the assembly to maintain its shape. Special purpose LT cables for overhead or vertical use may have additional elements such as steel structural supports. Some LT cables for outdoor overhead use may have no outer sheath.
Features :
Insulation: In PVC Power Cables the conductor is insulated with the poly vinyl chloride covering over conductor as insulation by extrusion process and In XLPE Power Cables cross linked polyethylene covering as insulation over conductor by extrusion process.
Colour of Cores: Cores are identified with a colour scheme as per IS:1554 (pt-1):1988 as under
- 1 Core: Red, Yellow, Blue and Black
- 2 Cores: Red and Black
- 3 Cores: Red, Yellow, and Blue
- 5 And 4 cores: Red, Yellow, Blue & Black (Reduced Neutral Core in case of 3½ Core).
Inner Sheath: The laid up cores are provided with the PVC inner sheath by extrusion or by wrapping of PVC Tape. Single core cables do not have inner sheath.
Armouring: Armouring is applied over inner sheath incase the calculated diameter over inner sheath does not exceed 13 mm, the armour consists of galvanized round steel wires. Where the calculated diameter over the inner sheath is greater than 13
AERIAL BUNCH CABLE
The LT/LV AB cables (aerial bunched) cable is a very novel concept in overhead power distribution, as compared with conventional bare conductor in overhead distribution system, AB cables provides higher safety, reliability, lower power losses and ultimate economy by reducing installation, maintenance and operative cost. This superior system is ideal for rural distribution and especially attractive for installation in difficult terrains such as highly areas, forest areas ,coastal areas etc.
Features :
Messenger (Neutral Conductor or Otherwise): The conductor is heat treated aluminium- magnesium-silicon alloy wire conforming to IS 398 (Part 4):1979.It is either stranded circular or compacted circular type and has minimum 7 strands with smooth surface.
Insulation: The conductor is insulated with crosslinked polyethylene applied by extrusion. The insulation so applied fits closely on the conductor and it is possible to remove without damaging the conductor. The color of insulation is black, offering UV protection.
Core Identification: The phase conductors is provided with one, two or three ‘ridges’ and outer neutral insulated conductor, if provided, has four ‘ridges’ for quick identification. The street lighting conductor and messenger conductor (if insulated) does not have any identification mark.
Assembly (Laying up): The required number of insulated phase conductors, one insulated neutral conductor (if required) and a street lighting conductor (if required) is twisted around the bare (or insulated) as required messenger conductor without fillers with a lay not exceeding 35times the diameter of the insulated phase conductor. The direction of lay is right hand.
Applications
- In power theft prone areas.
- As replacement of bare lines in rural areas, in woods, other localities & narrow street where space is limited.
- As replacement of bare lines where reliability of supply is of prime importance and where high degree of stability of supply voltage is of importance.
- In hilly terrains where cost of erection of overhead lines of underground cable becomes very high.
- As reinforcement of existing system without increasing voltage.
- For temporary supplies.

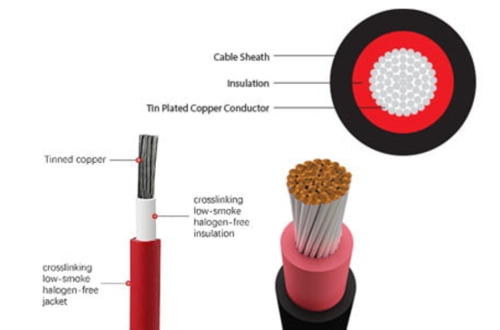

DC SOLAR CABLE
Solar cables are designed for connecting photovoltaic power supply systems.They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions.
Features :
Insulation: Crosslinked Halogen Free & Flame Retardant Insulation , Colour : White , Red Or Black
Outer Sheath: Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black Or Black with Red Strip
Applications
- Solar cables are intented for use in photovoltaic power supply systems.
- Buried in ground for constructional covered systems.
- Used in residential and large scale solar farms.
- Panel to Combiner Box.
- Combiner Box to Power Inverter.
- Power Inverter to Transformer.
- Weather resistant & UV resistant
- Resistant to mineral oils & chemicals
- Resistant to acids & alkaline
- Voltage rating: 1.5 (1.8) KV DC / 0.6 / 1.0 (1.2) KV AC
- High voltage test 6.5KV DC for 5 minutes
- Insulation resistance – 1000 MΩ/km
- Spark test – 6000 V AC(8000 V DC)
- Maximum Conductor temperature of operation at 120°C during 20000 hours
- Ambient temperature: -40°C to +90°C
- Generally conforming to National/International standards
- Resistant to Impact, tear & abrasion
- Minimum bending radius – 4 times of overall diameter
- Safe pulling force -50 N/sqmm
FLEXIBLE WIRE
Single Core Flexibles :
| Type of Insulation | 70°C/105°C Heat Resistant PVC | Flame Retardant Low Smoke (FRLS) | Halogen Free (HFFR) From 1.0 to 4.0 Sq.mm. |
| Typical Applications | Wiring of panels for use in high ambient temperature | Wiring in high density critical installations in public places and fire prone areas | Wiring in high density critical installations in public places and vicinity of electronic systems |
| Applicable Standards | IS-694, BS 6004, IEC 60227, DIN VDE-0281-3 | IEC 60332-1, BS 4066-1, EIC-60754-1, ASTMD-2843, ASTMD-2863 | IEC 60332-1&3, BS 4066-1&3, IEC 60754-1&2, ASTMD-2863, BS 7211, DIN VDE-0282-9 |
Multicore Flexibles :
| Standard PVC | Standard PVC, HRPVC | IS 694, BS 6500, IEC 60227, DIN VDE-0281 | Power Cords for appliance, temporary power supplies, 3 core flat cables are suitable for submersible pump applications. |
| Heat Resistant PVC up to 105°C | Standard PVC, HRPVC | IS 694, BS 6500, IEC 60227, DIN VDE-0281 | Hi-power appliances, ovens, temporary power supply in higher temperature areas. |
| Standard PVC of FRLS | FRLS (Flame Retardant Low Smoke) | IS 694, BS 6500, IEC 60227, DIN VDE-0281, IEC 60754-1, IEC 60332-1, BS-4066-1, ASTMD-2843, ASTMD-2863 | Power cords for application used in fire prone areas, flame proof equipments, machine tools used in critical locations and heat zones. |

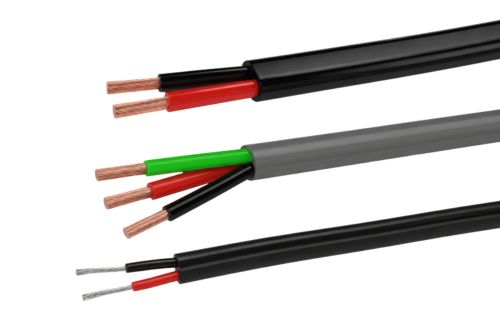

FLAT CABLES
2 Core & 3 Core Sheathed Flat Cables
2 & 3 PVC insulated cores laid up together and PVC sheathed overall. Application for light duty purpose for both indoors and outdoors such as portable tools and domestic appliances.
- Domestic Electrical Equipment
- Electrical Wires
- Electronics Applications
- Measurement & Regulation
- Production Equipment
- Wire and Cables
Aluminium Twin Flat cable
Core Colour : Red, yellow (centre core), blue
Sheath Colour : Black
Insulation : PVC
Range : Upto 95 sqmm
Conductor : EC Grade Flexible Copper Conductor
Sheath: PVC ST-1
Specification : IS 694/As per Relevant Standards
Applications
- The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications.
- The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water. The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications.
- The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water

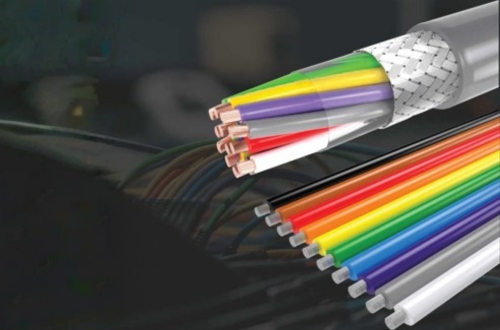

ELECTRONICS & INSTRUMENTATION CABLES
we manufacture high-precision electronics and instrumentation cables designed for accurate signal transmission, reliable performance, and long-term durability. Built with advanced engineering and strict quality standards, our cables are trusted by OEMs and global industries where precision and reliability are critical.
Features :
Applications
Shivaay electronics & instrumentation cables are widely used in:
- Industrial automation & control systems
- Electronics manufacturing & R&D
- Corporate presentations and conference rooms
- OEM supply for electronics and lifestyle brands
Why Choose Shivaay Cable Electronics & Instrumentation Cables?
- Comprehensive Range – Includes signal cables, thermocouple cables, control & instrumentation cables, multi-core electronic cables, and shielded cables.
- Precision Performance – Ensures low signal loss, minimal interference, and high accuracy.
- Durability Under Harsh Conditions – Resistant to heat, chemicals, and mechanical stress.
- OEM Customization – Tailored lengths, materials, insulation, shielding, and branding for client needs.
- Universal Compatibility – Supports home theaters, studio equipment, televisions, sound systems, and musical devices.
- Global Standards – Designed and manufactured to meet international safety and quality certifications
PLUG & POWER CORD 2 PIN & 3PIN
At Shivaay Cable Industries, we specialize in the design and manufacturing of a wide range of electrical plugs and cords that combine safety, durability, and efficiency. Built to meet international quality standards, our plugs and cords are trusted by OEMs and industries worldwide for their reliable performance in household, commercial, and industrial applications.
Features :
Applications
Our plugs and cords are widely used in:
- Home appliances (kitchen, consumer electronics, lifestyle devices)
- Industrial and mobility equipment
- International export markets with region-specific plug requirements
Why Choose Shivaay Cable Plugs & Cords?
- Wide Product Range – From 2 pin and 3 pin plugs to 16 amp heavy-duty plugs, Sokoh plugs, and region-specific solutions like UK plugs (BS Standard) and US polarized/non-polarized plugs, we cover all major requirements.
- Global Standards Compliance – Designed and manufactured to meet safety certifications and regulatory guidelines across international markets.
- Durability & Safety – Every product is engineered for long service life, consistent power delivery, and user safety.
- Whether you need standard plugs or tailor-made OEM solutions, Shivaay Cable ensures products that deliver power you can trust.
Instrument Cable: :
Our Instrumentation Cables are made using evenly bare/tin plated copper conductors further insulated with HR PVC. These cores are further twisted together in pairs and encased in a shield, such as foil or mesh, to create overall shielded pair cables. These shields guard against electromagnetic interference on the wires. The majority of crosstalk may be effectively eliminated via shielded cables. Our shielded cables do need a ground, which makes them different from control cables. Although their installation may need a little more skill, they offer great data transfer rates.
